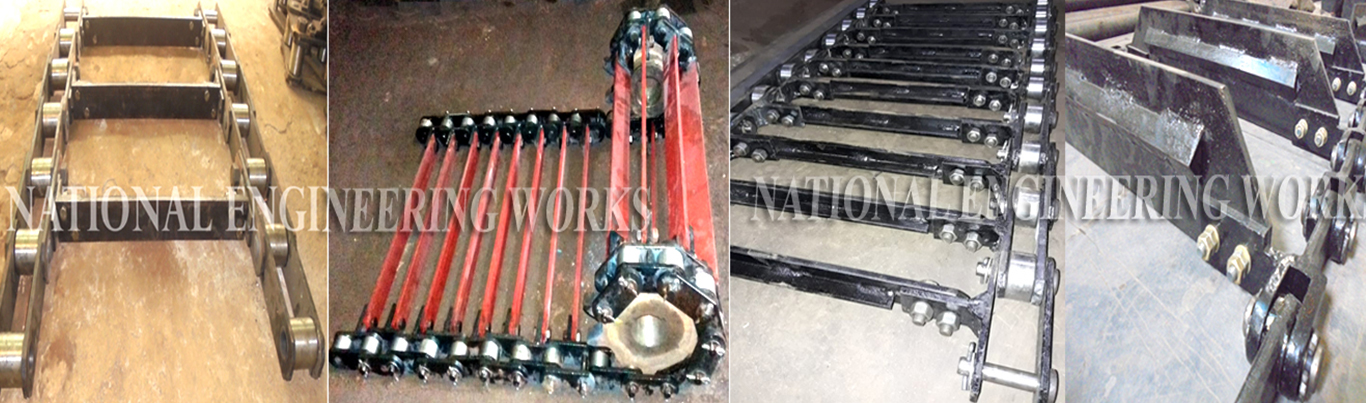

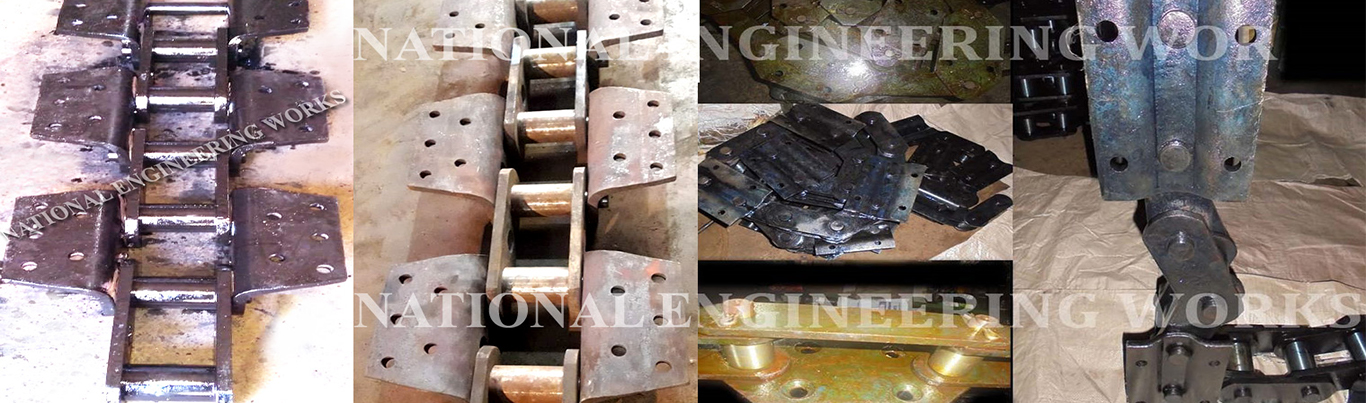

Scraper Chain

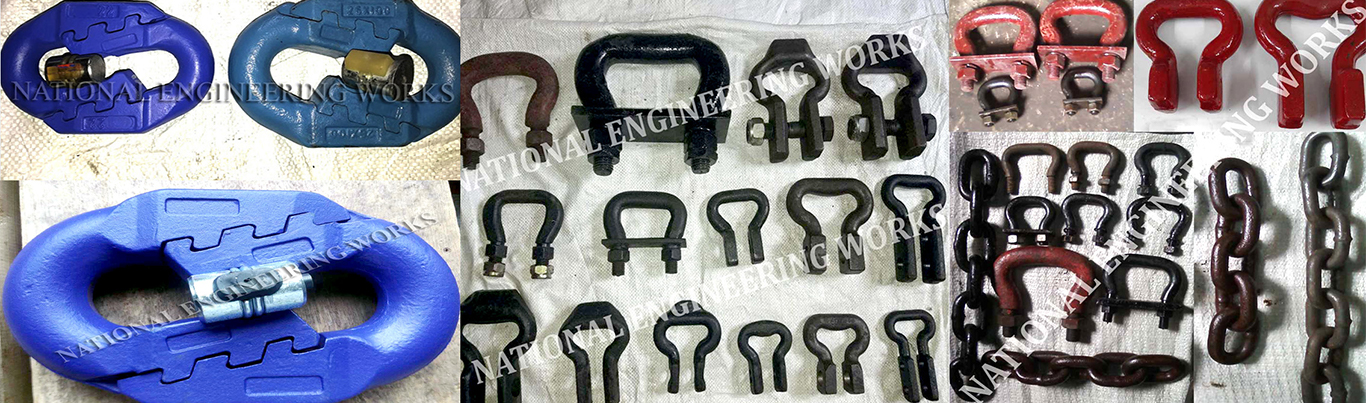

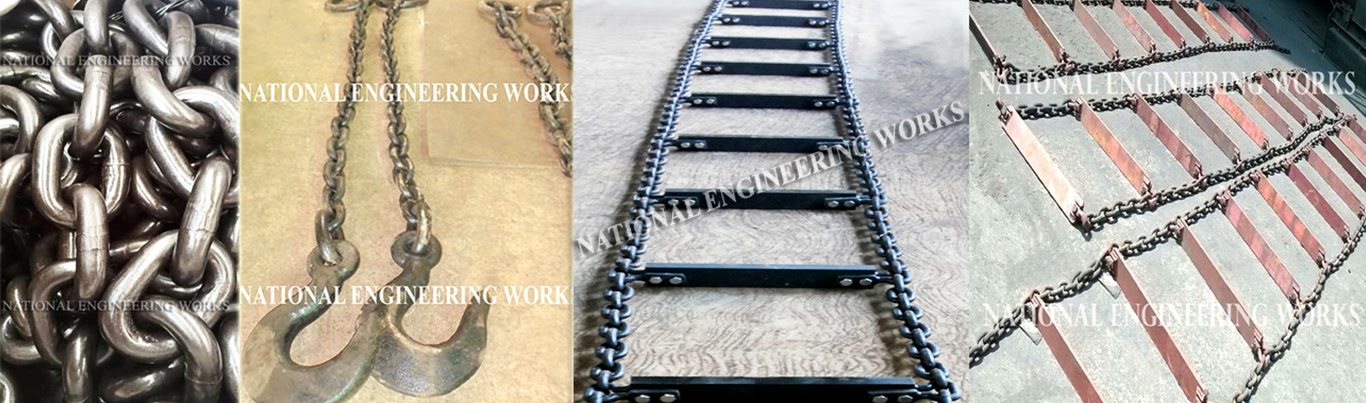

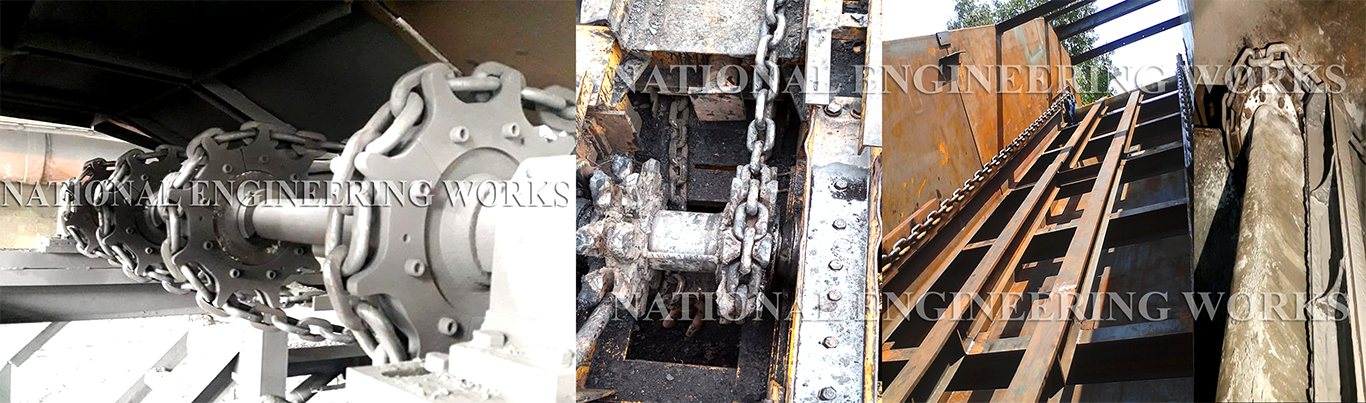

Designed for the purpose of scrapping of bulk abrasive materials, special hard surface chains for En-masse conveyor / Redler chain conveyor, Scraper Reclaimer conveyor etc, are fabricated ensuring optimum breaking strength from highly ductile materials and available in a variety of forms like forged link chains, block forged chains, pin bushed / pin bush roller chains and heavy duty calibrated & tested round link chains ( IS 3948 / DIN 22252-2 ) and also spares like outboard scraper bar, forged outboard shackle connectors, chain connector with wear pad (ISO 1082).

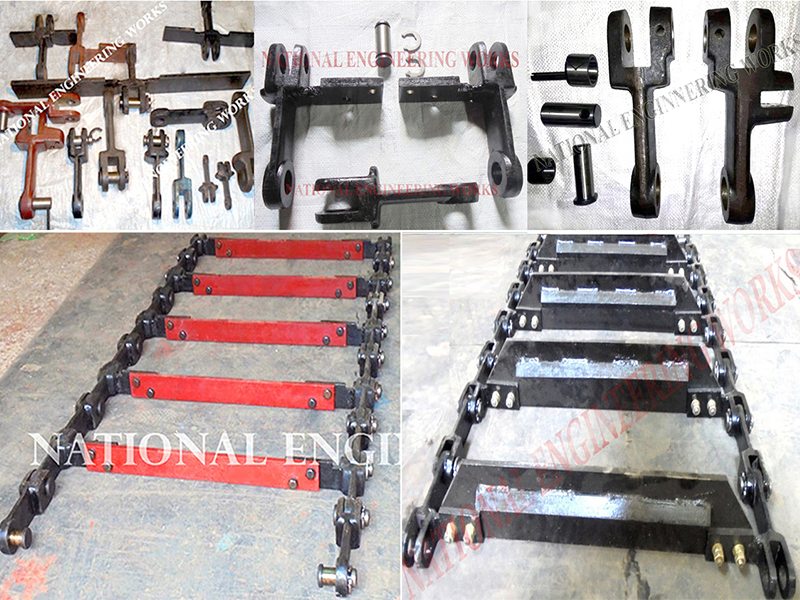

Wet Scraper Chain Link

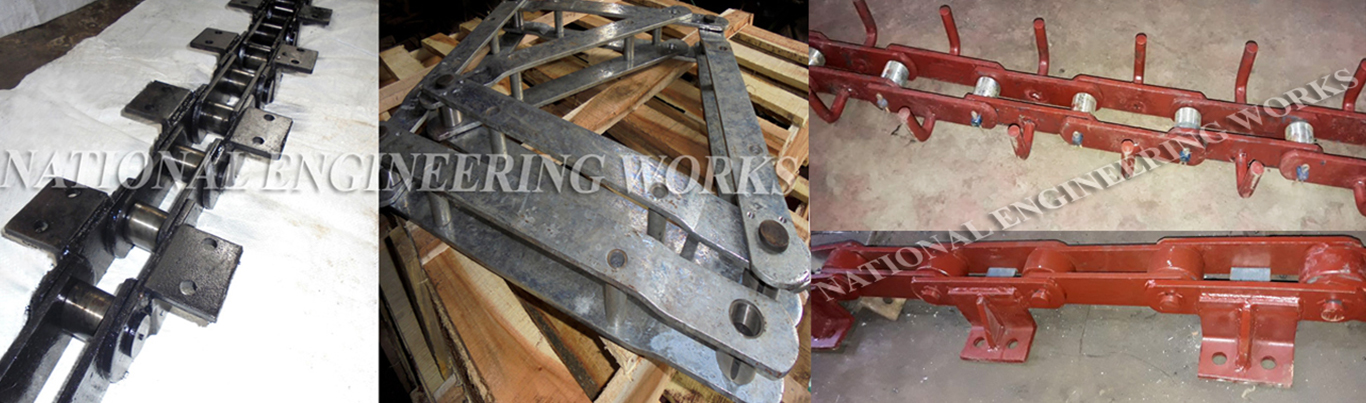

We manufacture a wide assortment of Drop Forged Forked Chain Links (76 – 216 mm pitch) for transportation of abrasive material in hot working condition. Mostly incorporated in application like Heavy-Duty Drag Chain Conveyors, Wet Scrapers, Boiler Feeders & Mill Hoppers, Ash Handling Conveyors, ESP Dust Conveyors, En-Masse Conveyors, Reclaimer & Intermediate Carriers etc, the chain links are manufactured from age resistant fine grained heat treatable alloy steel and stainless steel, heat treated to surface hardness more than 550 HV having breaking strength up to 600 N/ SQ mm. Salient note-worthy features of our Chain Links are :

• Closed die drop forged to attain compact grain construction
• Inner portion of Fork precisely machined ensuring minimized friction and wear
• Inside load bearing pivots inductively hardened
• Case hardened up to RC 55, case depth from 0.7 mm to 1.0 mm for abrasive application
• Through hardened for higher U.T.S during high tensile application to bear impact load
• Duly normalized and stress relieved to preserve grain structure to impart optimum breaking strength

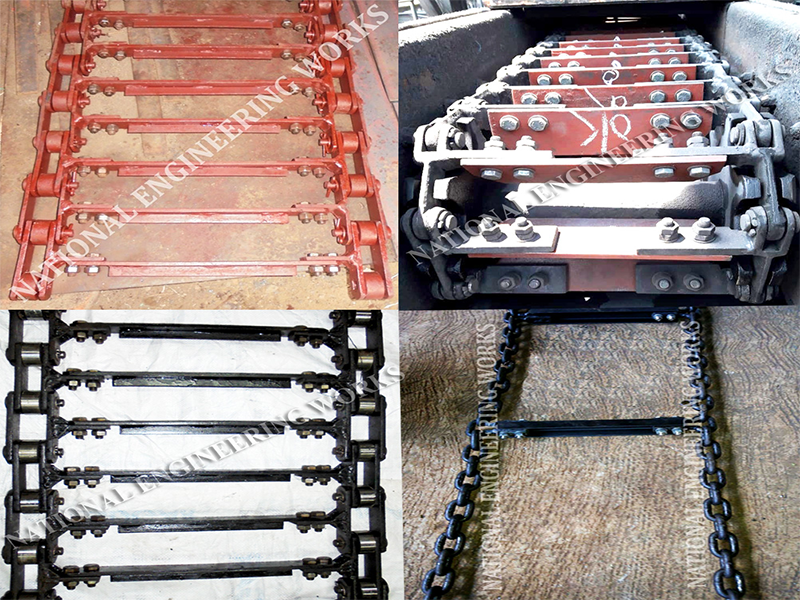

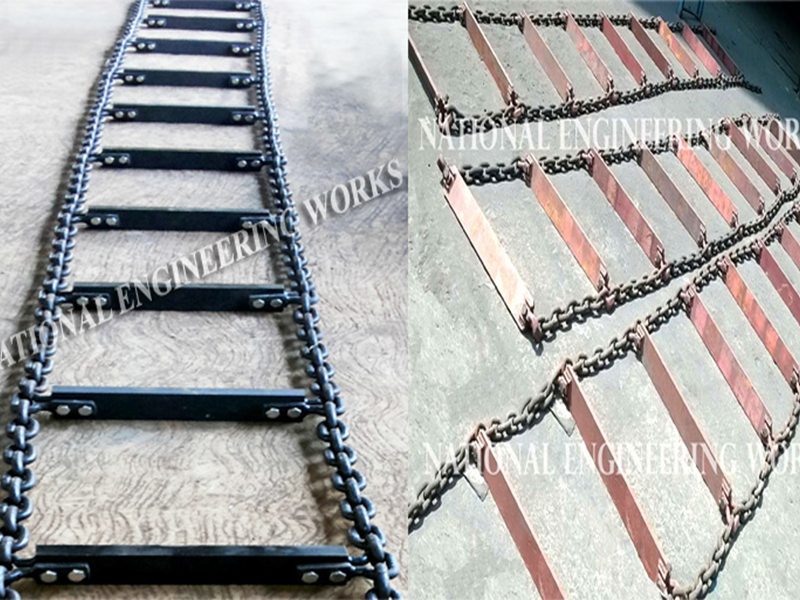

Within a complete linear arrangement or loop, flights and scraper blades are usually incorporated at every single or predetermined pitch. These chains can be supplied preassembled with case hardened joint pins and can be smeared with protective coating. Forged Block type Chain Links can also be developed to meet customers’ specification and requirements.

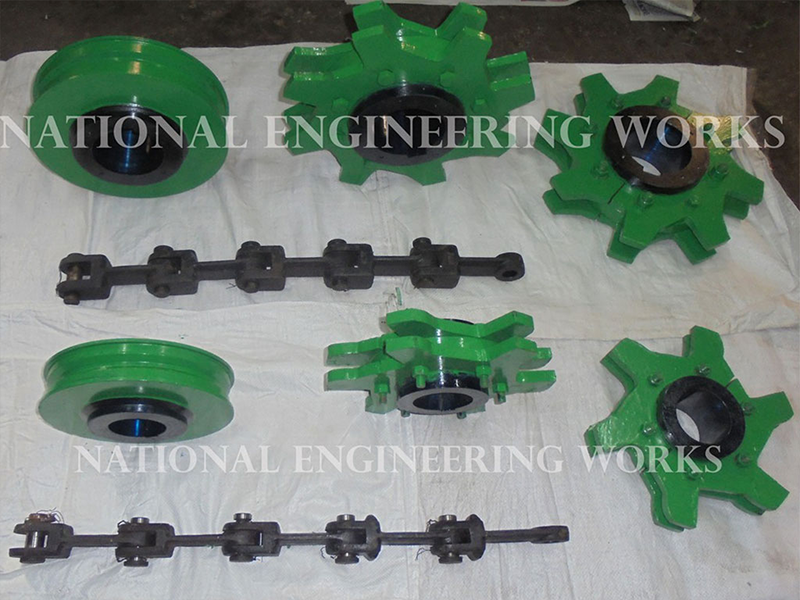

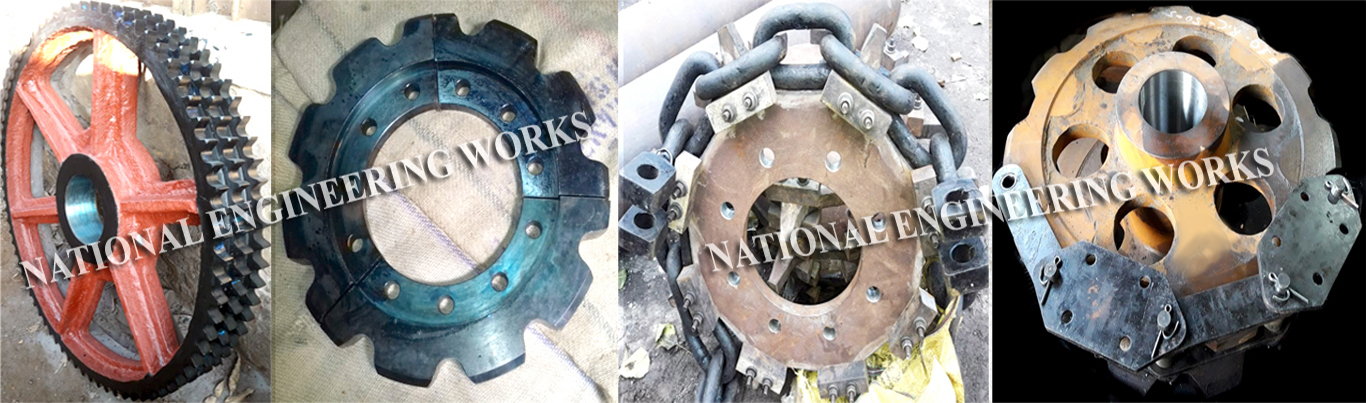

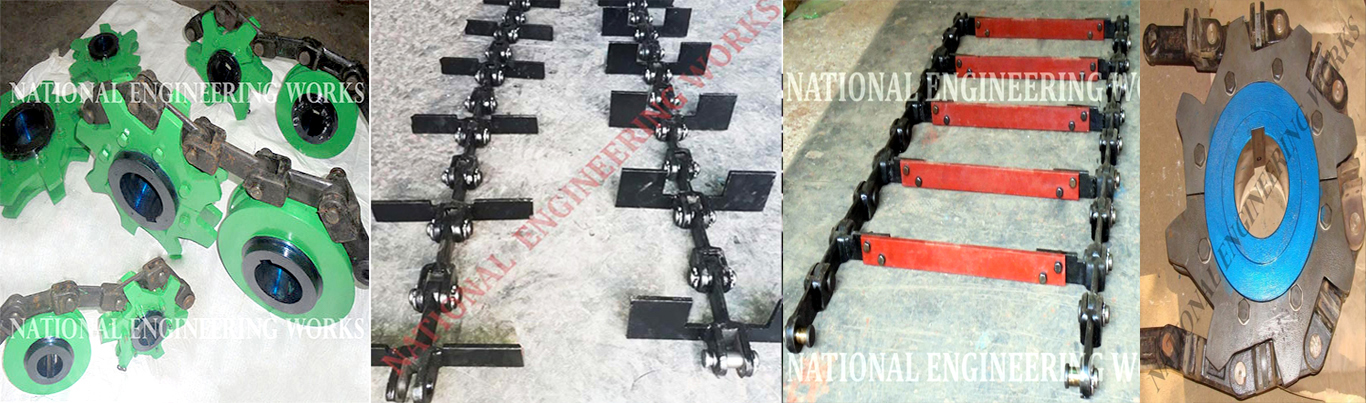

Forged Forked Drag Chain Link & Sprocket Wheel

We manufacture a wide assortment of Drop Forged Forked Chain Links (76 – 216 mm pitch) for transportation of abrasive material in hot working condition.
