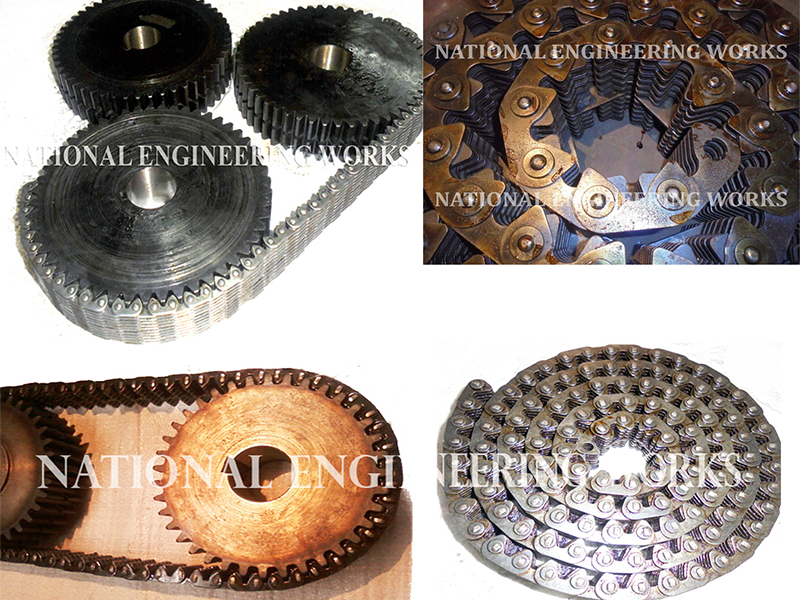

Inverted Tooth Silent Chain
Undoubtedly among the forerunners of Tooth Chain technology, we boast of our expertise in dealing imported and import substitute quality Inverted Tooth Chain Drives. Probably maintaining hitherto unsurpassed extensive stock of imported silent chains, National Engineering Works manufactures and supplies a comprehensive range of Silent Chain conforming to ANSI B29.2M ( up to 1.5” Pitch ) and Inverted Tooth Conveyor Chain ( Up to 1 inch Pitch & 12 inch width ) with Centre Guide , Side Guide , Multi Guide & Silent Chain Sprocket ( Silent Chain Drive ) for varied industrial and machinery application . These Toothed Chains operate smoothly, quietly and dependably in rigorous application, especially in High-Speed Transmission. These Chains withstand heavy load at high operating speed with minimal emission of heat. Structurally, the link plates of Silent Chain strike the sprocket at an angle , thus produce comparatively reduced noise ( Silent ). Mostly, the pin is comprised of two case hardened rolling segments that have rotational contact. This rotational contact vouches for reduced wear elongation, reduced vibrating noise and increased service life of Silent Chain even in most demanding condition. Manufactured using latest know-how, our precision engineered Inverted Tooth Chain ( Silent Chain ) deliver superior performance and offer long service life.

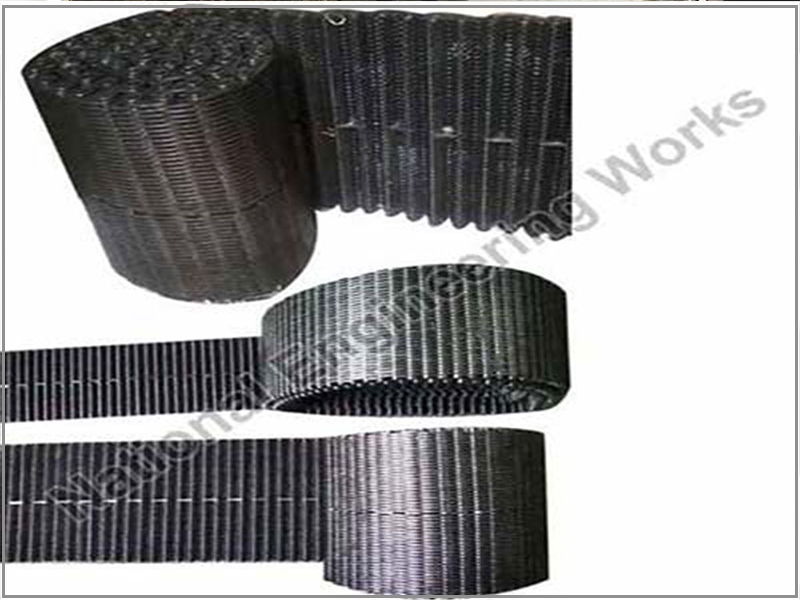

Inverted Tooth Conveyor Chain
Flat top bearing surface of the Inverted Tooth Conveyor Chain guarantees stability of the products being conveyed. All Link, Link and Spacer and Extended Pitch arrangements can be offered for IS machine conveyors or cross conveyors along with corresponding Gear.

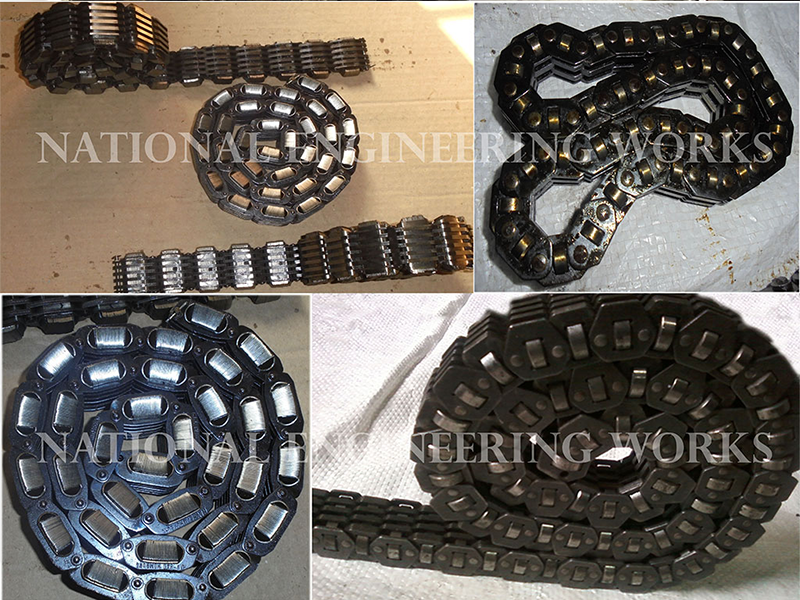

PIV Gear Box Chain
Imported, Imported equivalent and import substitute quality PIV Chains, designed to suit English, German, Czech as well as Indian make P.I.V. units, are available / developed in Slat / Laminated (A0 - A6, B, C, D, E, F, H1 – H4) & Roller Bearing ( RB0 – RB4, RC3, RC4, RS Cylinder Roller Bearing ) type to mesh perfectly the serration of PIV Conical Discs and they transmit the maximum power without damaging the conical discs. The salient features of our PIV Chains are :
- Positive No Slip Transmission
- Shock-less Operation under Load Fluctuation
- Constant Speed Ratio
- Easy Speed Change
- Infinite Speed Setting
